Invader Axle Keyway

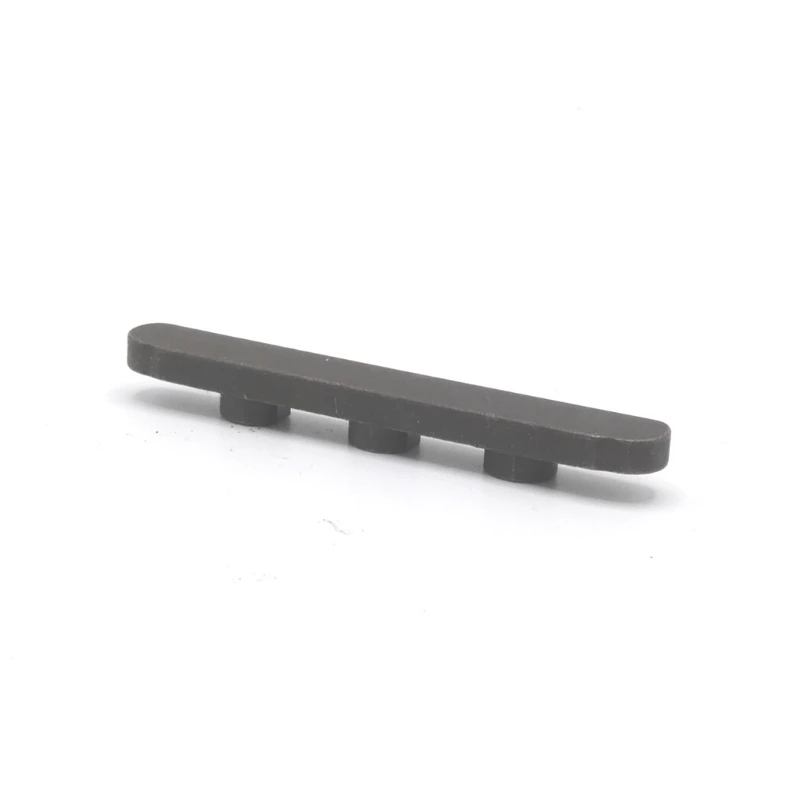

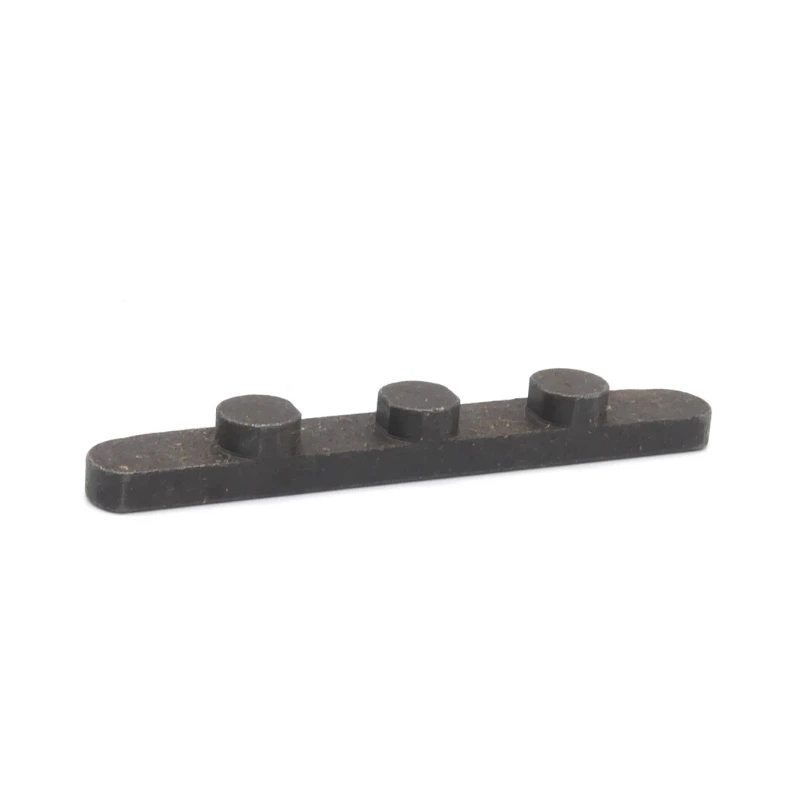

Axle keyway for Invader racing go karts. These axle keyways are designed to support kart hubs, brake carriers, sprocket carriers, and components for 40 or 50mm axles with pre-drilled peg holes, and are designed to fit a ‘3-peg’ design. Each keyway is 8mm in width, with (3) 7.5mm diameter pegs, spaced at 15.0mm from each other, center-center. This spacing is critical to ensure correct fit, as not all keyways are created in this same dimension. The height of the keyway is 3.50mm. 3-Peg keyway (CKR/CRG Spacing) 8mm width x 60mm length.
