Belt Drive Sprocket & Clutch Drum

Description

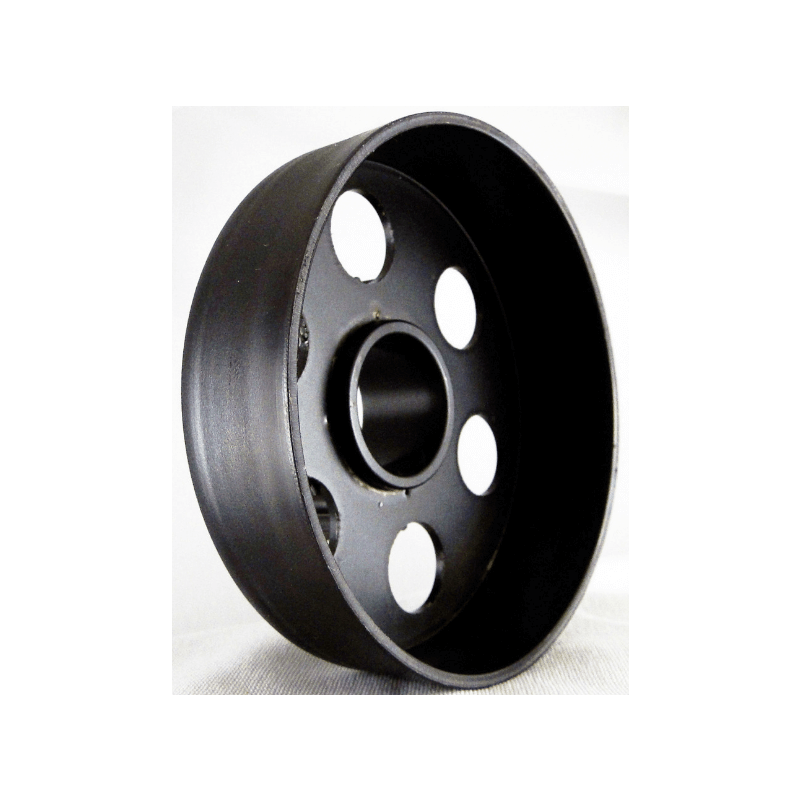

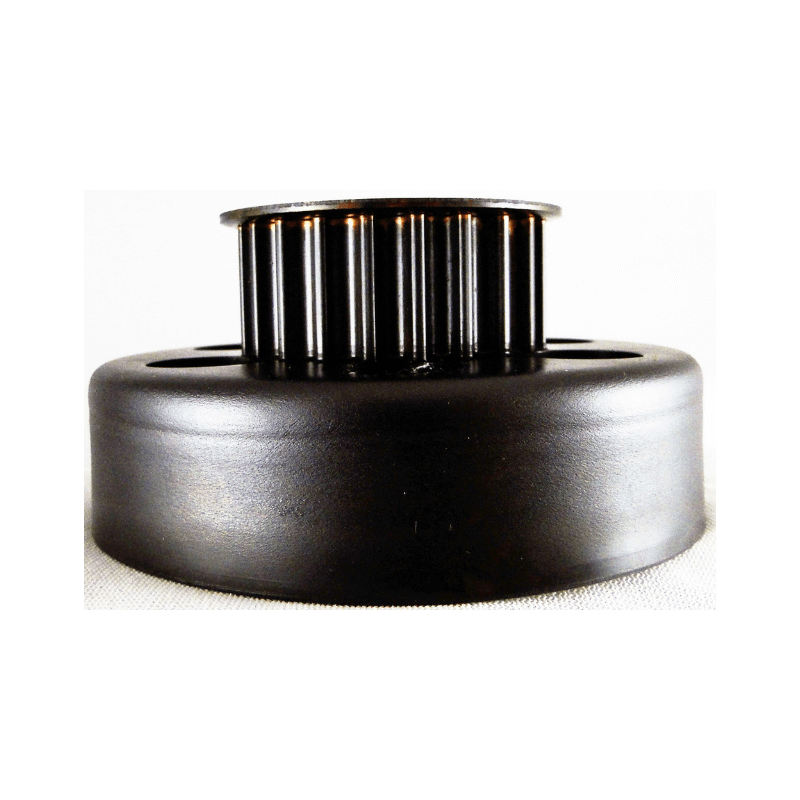

• Belt Drive Clutch Drum and Drive Sprocket for Go Karts by Pfeifer Industries.

• 22mm sprocket width, with teeth designed to fit an 8mm pitch belt.
• Ideal for belt-drive powertrain systems that utilize the Max Torque or Hilliard clutch systems.
• Integrated sprocket driver furnace brazed to a dye-hardened steel drum.

• Various sprocket tooth counts available:
• 16 – 30 tooth options available.
• Multiple drum options available:

• Bronze Bushing Option: Ideal for Hilliard clutch system. Can be utilized with either the “Bronze Bushing” clutch system or needle bearing/steel race systems.

• Needle Bearing Option: Ideal for Max Torque clutch. An integrated needle bearing is pressed into the sprocket for perfect fit and function with the Max Torque clutch.
