This is hands down the number one tire pressure gauge on the market for both go kart and car racers!

Now with the Prisma Electronics App, you can wirelessly connect your instruments to view and export all stored sessions! With the built in stopwatch, accurately check and save your tire pressures and time four of your competitors all in one device.

Keep track of both hot and cold tire pressures for multiple sessions as well as lap times for four drivers with 9 individual split times!

Details

TIMER mode

Time and date
Outdoor air temperature – in °C or °F
Menu languages – ITA – ENG – FRA
Automatically backlit display with light sensor
Belt clip
IP55

Stopwatch mode

Mode A – Absolute Split time
Mode I – Incremental Split time

Stored data
For each session, the following data is stored:

Time and date of the session
Outdoor air temperature
Statistics of the 3 Best Times per lap for each driver and their differences
Storage of 30 laps for each driver and their intervals
Up to 9 intervals per lap

Memory

7 Timer sessions
50 Digital gauge sessions

PRESSURE SHOT® FUNCTION

By activating the PRESSURE SHOT function through the menu, the tool stores the tire pressures when HOT without having to press any buttons. This feature allows you to save the pressures immediately, preventing the tires from cooling and obtaining unrealistic values.

Pressure Accuracy CLASS: 0.1%

Maximum error at 5 BAR: +/- 0.005 BAR — (0.072 PSI)
Maximum error at 1 BAR: +/- 0.001 BAR — (0.014 PSI)

Calibration

The Prisma 5 (HPM5X) digital gauge does not require calibration. The internal microprocessor calibrates the tool every time it is turned on to ensure correct readings at 100%.

Pressure and Temperature

Pressure measurement units in BAR and PSI
Temperature measurement units in CELSIUS and FAHRENHEIT

Set the direction of saving data depending on the circuit

Clockwise
Counterclockwise
You can set whether to start from the front or rear wheels

Prisma

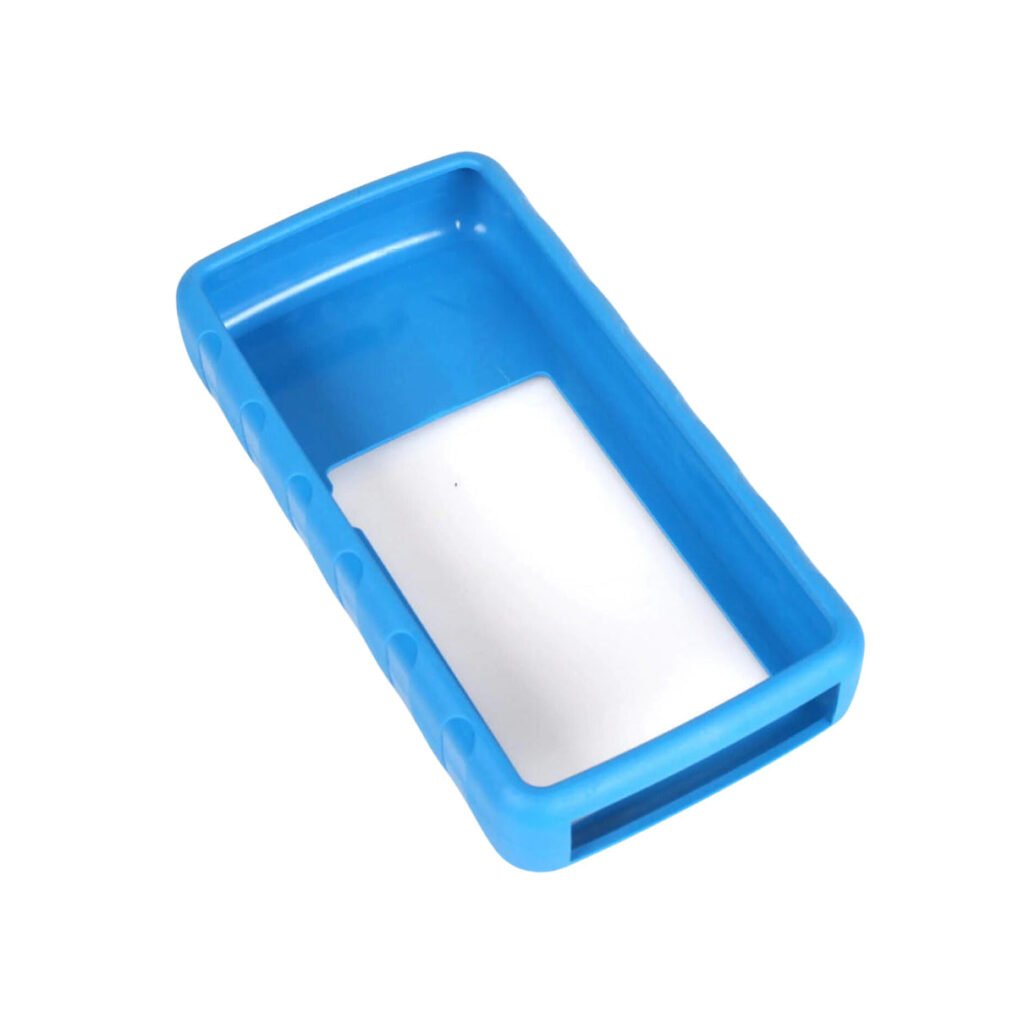

Prisma HiPreMa 4 Cover
